FAQ & Quick guides

The Felton Oxijet is a water saving shower attachment that changes the characteristics of your shower when compared to traditional flow restrictors. While saving water, it gives a luxurious showering experience.

The Oxijet utilise the venturi effect, jetting the water through 4 micro nozzles. This increases the water speed dragging air through the coloured baffles. This air volumizes the water stream, forming small bubbles that burst when they touch your skin.

If you have a shower handpiece, use the Oxijet with yellow baffles.

If you have a fixed rose with a female thread, use the Oxijet with pink baffles.

If you have a fixed rose with a male thread, use the Oxijet with blue baffles.

If you have mains pressure (over 300 kPa/3 Bar), and a non-restrictive handpiece/fixed rose, the Oxijet should work for you.

The Oxijet will NOT work if you have any of the following:

  • Low flow electric shower
  • Low or unequal water pressures
  • A restrictive handpiece/fixed rose.

It is made from DR Brass, which is machined, and then chrome plated. The baffles are made from silicon rubber.

A restrictive handpiece/fixed rose is one that has a flow restrictor or flow saving device fitted to it that can't be removed.

Some handpieces and fixed roses have flow restrictors which can be removed. These will work with the Oxijet, but the restrictors must be removed first.

Your Oxijet is installed so that waterflow follows the direction of the arrow and yet water is leaking out the baffles there are two potential causes:

  1. Your handpiece or fixed rose may contain a flow restrictor. If it is removable please take it out. If it is not, you may have a restrictive handpiece/rose and the Oxijet will not work for you.

  2. The water may appear to be coming from the baffles, the actual leak may be caused by the Oxijet not sealing on the hose/stem's rubber washer. We've made the threads on the Oxijet longer than most fittings. They will work but it may not fit every shower in the market. Please check that the washer is installed correctly in the hose/stem, and that the Oxijet is tightened firmly.

This is normal, and is part of the self-draining function of the Oxijet. A common observation is that when showers are turned off, water left in the rose/handpiece may drip for some minutes before draining. A handpiece/rose fitted with an Oxijet will drain almost immediately.

This is normal. Small droplets of water may escape due to the turbulence created by the jets within the Oxijet.

This is normal. While the baffles reduce the noise of the air entering the stream, the noise of air exiting your handpiece or rose is not preventable, and is simply a sign that the Oxijet is performing well.

If the flow through the Oxijet is too low to provide an adequate shower, there are three potential causes:

  1. You may not have mains pressure, and your pressures are most likely below 300kPa, and therefore the Oxijet is not suitable.

  2. You may have a flow restrictor somewhere in the system. For a fixed rose, please check within the stem. For a handpiece, at both ends of the hose (including the wall elbow).

  3. If neither of the previous situations apply to you, it is most likely that you have a restrictive handpiece, and therefore the Oxijet is not suitable for use.

The flow resistance through the Oxijet will create extra pressure within your shower hose. We recommend only EN1113 rated shower hoses are suitable for use with Oxijet. There are some shower hoses supplied into the Australian market that do not meet this quality standard, and these may leak under increased pressure. Replace with a standard approved hose.

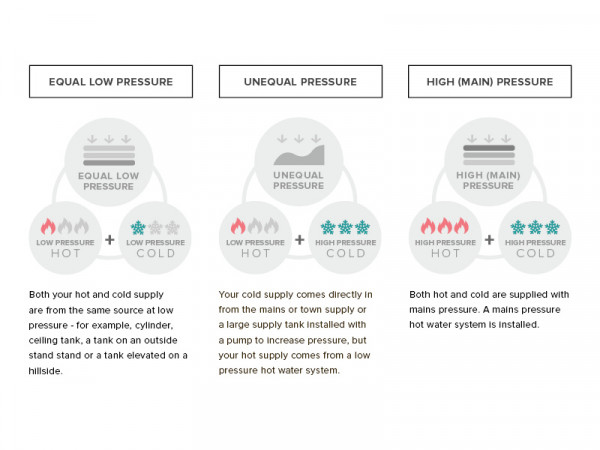

If you're unsure what your pressure system is the Thumb Test is a rough guide: If you can hold your thumb over the outlet of the tap while it is fully turned on (either hot or cold), it is most definitely low pressure. Be careful not to scald yourself when checking the hot supply. Always check with your plumber to confirm.

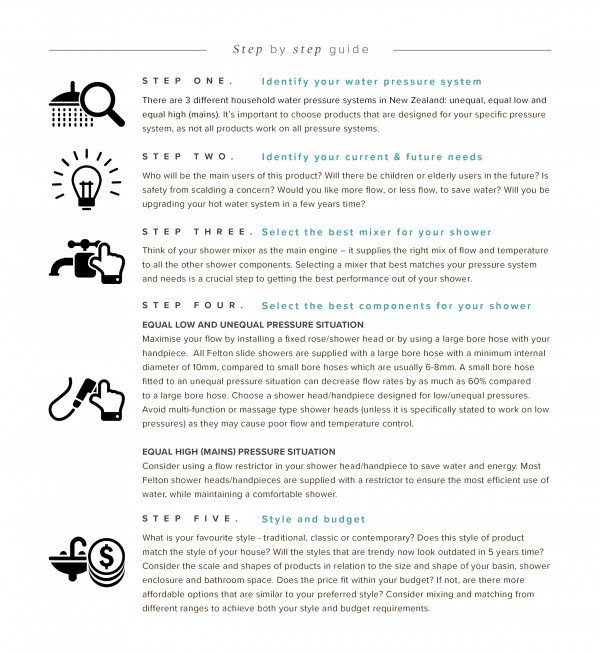

Whether you're building a new bathroom, renovating or replacing an existing shower, choosing products can be a daunting task with so many different brands and variety on the market. Many consumers base their decisions solely on price or style, but this often results in poor performance as the product may not be suited to their particular situation.

Check out our range of products to find your style

Avoid waxes, solvents, abrasives, acids and other chemical based cleaning products. Do not use any rough surface materials such as scourers – use a soft/microfiber cloth with warm soapy water to clean your matte black products.

We offer 5 Year Limited Warranty on Product Finish and 10 year warranty + extendable to Lifetime *on replacement parts. Full T+C’s are on our website www.felton.co.nz

Electroplating is a process that uses electric currents to dissolve metal to form a metal coating. Electroplating is harder wearing than powder coating or painting, which is why we have chosen this for our Axiss Matte Black range. Although Electroplating is more durable than powder coating or painting, it is not scratch proof and care should be taken when cleaning and handling the products – just like chrome tapware.

Any metal coating can scratch, but that does not mean it is likely to scratch. Similar to chrome or a polished car - if you get something sharp or hard and scrape it back and forth on the surface it will leave a mark or might even remove some coating. All that should really touch tapware and showerware is skin, microfiber cloths and towels. Rings on fingers can be a risk - but it takes aggressive handling to really be a risk.

The main risk of damage is in the installation and the building phase - once installed, the items need protection until the house is finished. If unprotected, tradespeople carrying large heavy tools and building materials will eventually make contact with expensive fixtures and cause damage. To help solve this issue we recommend your installer leaves the cloth bag the mixer comes in placed over the top of the product until all work is finished.

The Fusion Plus® is an All Pressure shower mixer with patented technology that allows for full front of wall access for maintenance and future upgrades — without removing the faceplate.

Find out more on our Technology page

This information is also available via the shower mixer installation guides on the product page

Swapping Out Venturi Jets Fusion Plus Shower Mixer April 2019

This information is also available via the shower mixer installation guides on the product page.

Please check the installation guide of the product you are fitting, as it contains a page which shows you how to remove the cartridge disc to clean the cold line mesh filter. You can access the installation guide on the product page.
